Model G Specifications
- Size: 5.25’ x 5.25’ x 17.62’
- Rated capacity: 2 tons
- Painted steel frame
- Painted steel bag lifting beam
- Galvanized I-beam
- Electric chain hoist
- Lower frame with one operator step

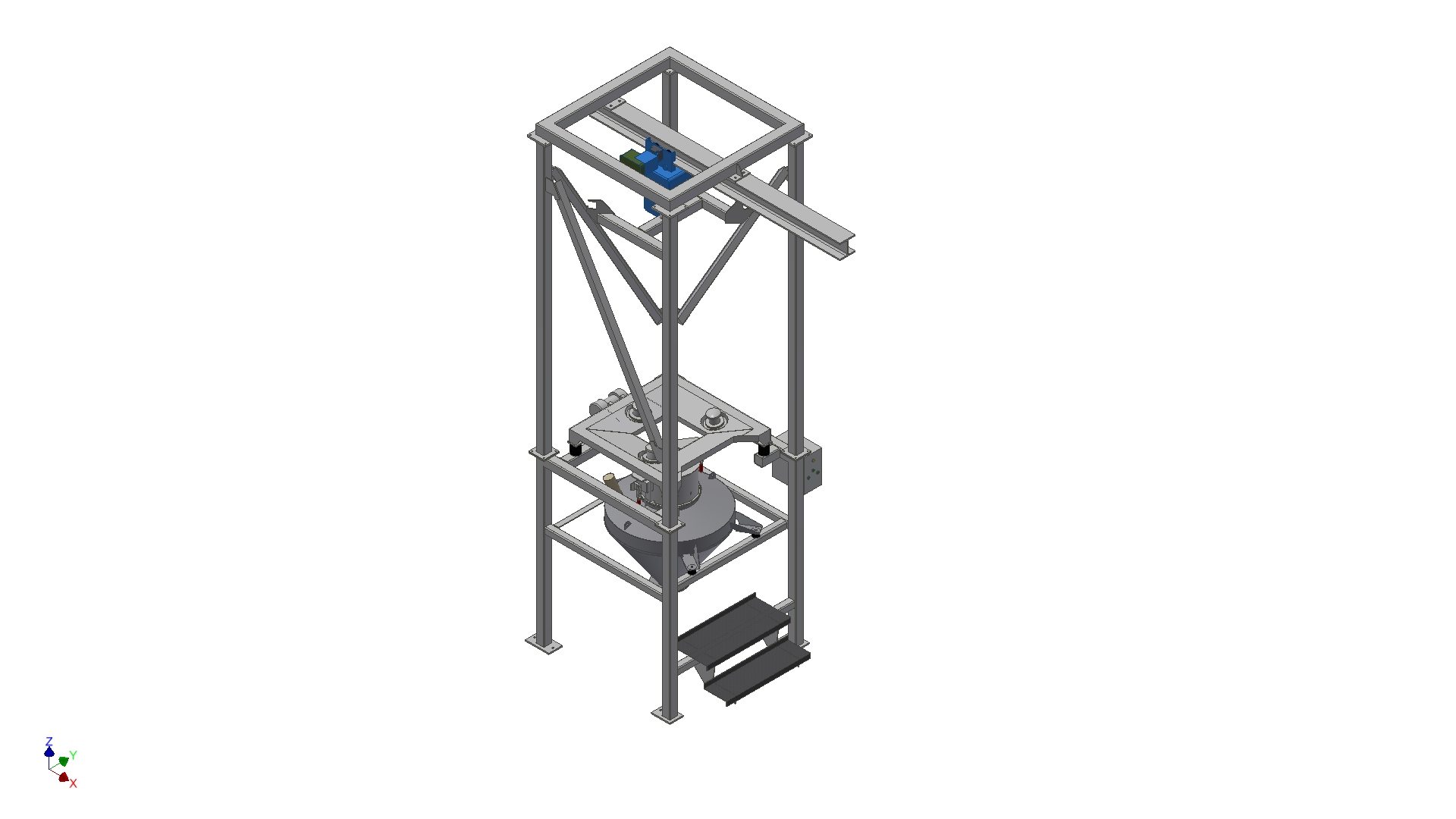

The AZO Model G Standard Modular Big Bag Unloader for Non-Free-Flowing Ingredients with Storage is configured for facilities that handle difficult, non-free-flowing ingredients.
Made of painted steel with a galvanized I-beam and electric chain hoist, the Model G Bulk Material Handling System allows for bags to be hung by a single operator, as well as easy bag adjustments to facilitate flow and complete emptying. It has a rated capacity of up to two tons.

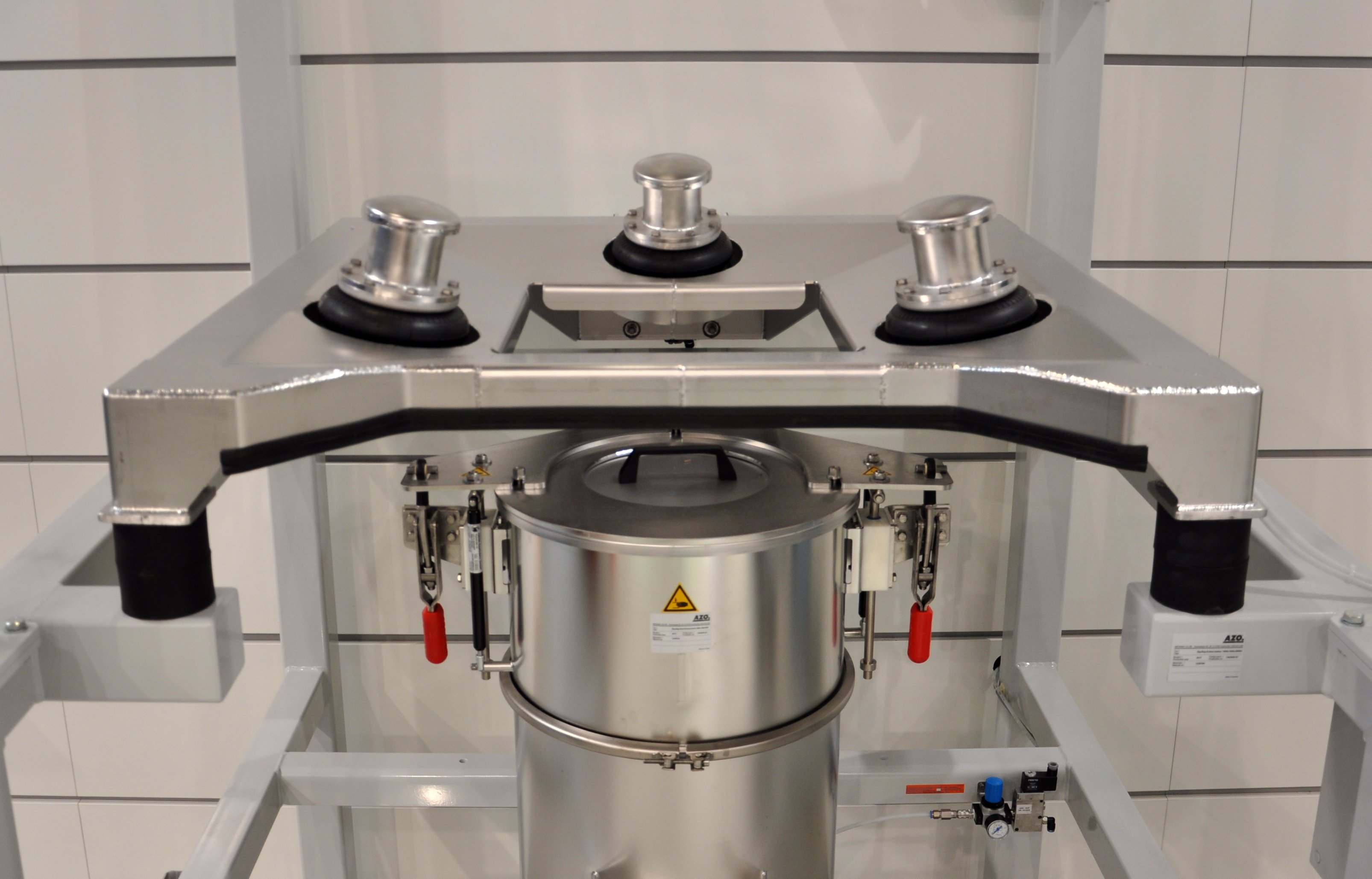

The Model G Big Bag Unloader features both a feeding hopper with 12 cubic feet of storage space and a safety support platform with massage pads for optimal discharge of poor-flowing ingredients. The connection system helps control dust and contamination.
Our German-engineered modular Bulk Bag Handling Systems are flexible and let your operation quickly react to changing production conditions with minimal or no additional costs.
Check out our additional Bulk Bag Unloader models below.
