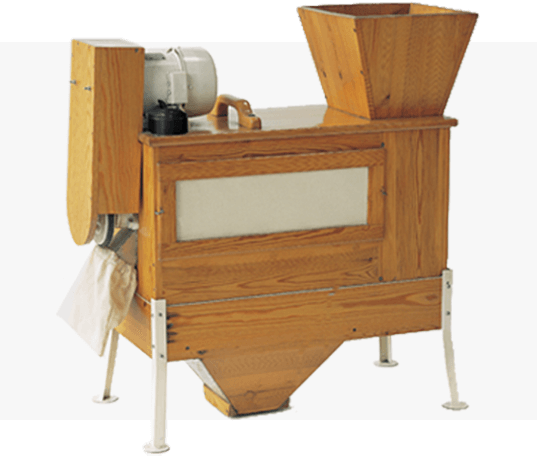

History of the Cyclone Screener

We officially launched “Triumph” (the first prototype of today’s cyclone screener) in 1952, but our newest line of cyclone screeners are still considered to be the best in the industry. Our incorporation of centrifugal motion has been the key ingredient to screening materials effectively since the early days.

While this innovation changed everything, our competitive advantage doesn’t stop at simply being the world’s first supplier of the cyclone screener. We also manufacture the most robust and heavy-duty screeners on the market today. We honor “Triumph” with rugged models like our E, DA and TW Cyclone Screeners – the competition has only mimicked “Triumph” since its inception, and their reliability pales in comparison to long-standing AZO standards.

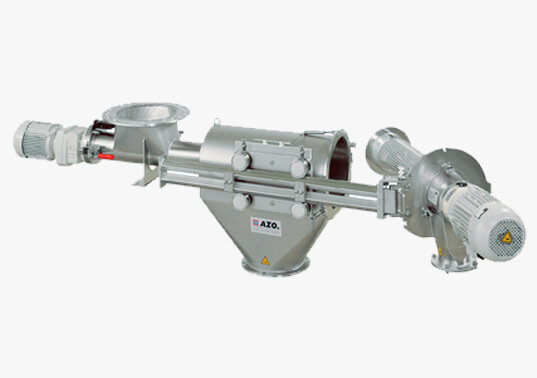

How Our Screeners Work

The material enters the cyclone screener from an upstream feeding device. The feeding screw transfers the product into the screening chamber where centrifugal motion is used to pass the product through the screen fabric. The screen-sized particles drop through, while oversized particles such as contaminants and agglomerates are discharged continuously into an oversized product container. The baffle at the end of the screening chamber prevents in-spec material from entering the oversized product container. The screen material, which is mounted on rings, vibrates freely and therefore cleans itself automatically.

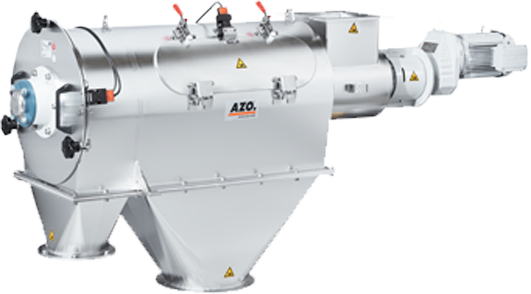

AZO Cyclone Screener Model E
For classification and safety screening of solid powders.
AZO Cyclone Screener Model DA
“Low-profile” screener (perfect for buildings with height restrictions).
AZO Cyclone Screener Type FLF
The FLF screener is ideal for screening solids from liquids.
AZO Pneumatic Screener TW650
Screening in pneumatic conveying systems and predominantly used in pressure applications for filling a silo.
