Mid-Height Modular Big Bag Unloader for Non-Free-Flowing Ingredients

Model C: Modular Big Bag Unloader

The AZO Model C Mid-Height Modular Big Bag Unloader for Non-Free-Flowing Ingredients is configured for operations that handle difficult ingredients.

Made of painted steel with a galvanized I-beam and electric chain hoist, the Model C Bulk Material Handling System allows for bags to be hung by a single operator, as well as easy bag adjustments to facilitate flow and complete emptying. It has a rated capacity of up to two tons.

The Model C Big Bag Unloader features both a feeding hopper with 3.5 cubic feet of storage space, and a safety support platform for optimal discharge of ingredients. The connection system helps control dust and contamination.

Our German-engineered modular bulk bag handling systems are flexible and let your operation quickly react to changing production conditions with minimal or no additional costs.

Check out our additional Modular Bulk Bag Unloader models below.

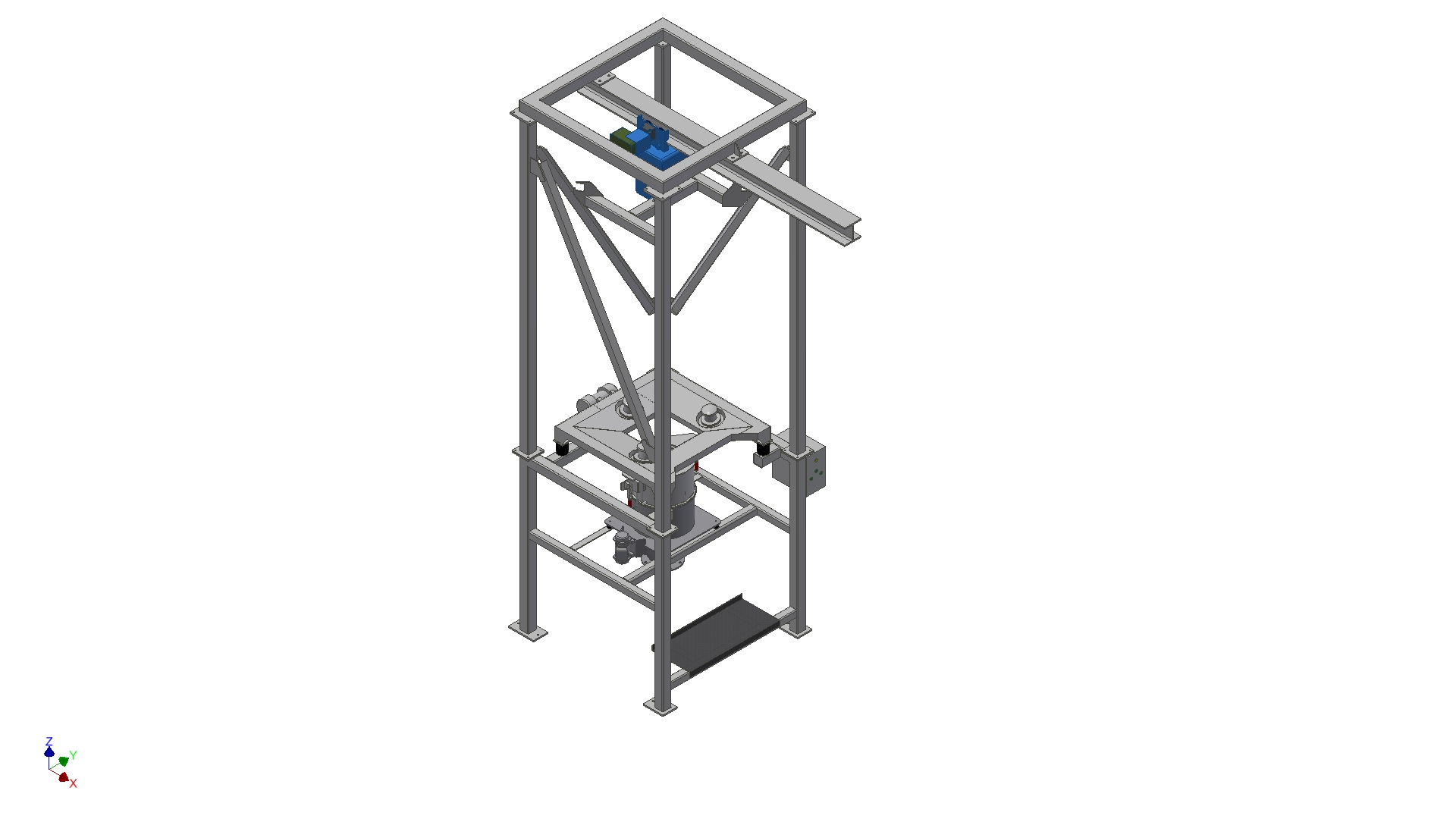

Model C Specifications

Model C Specifications

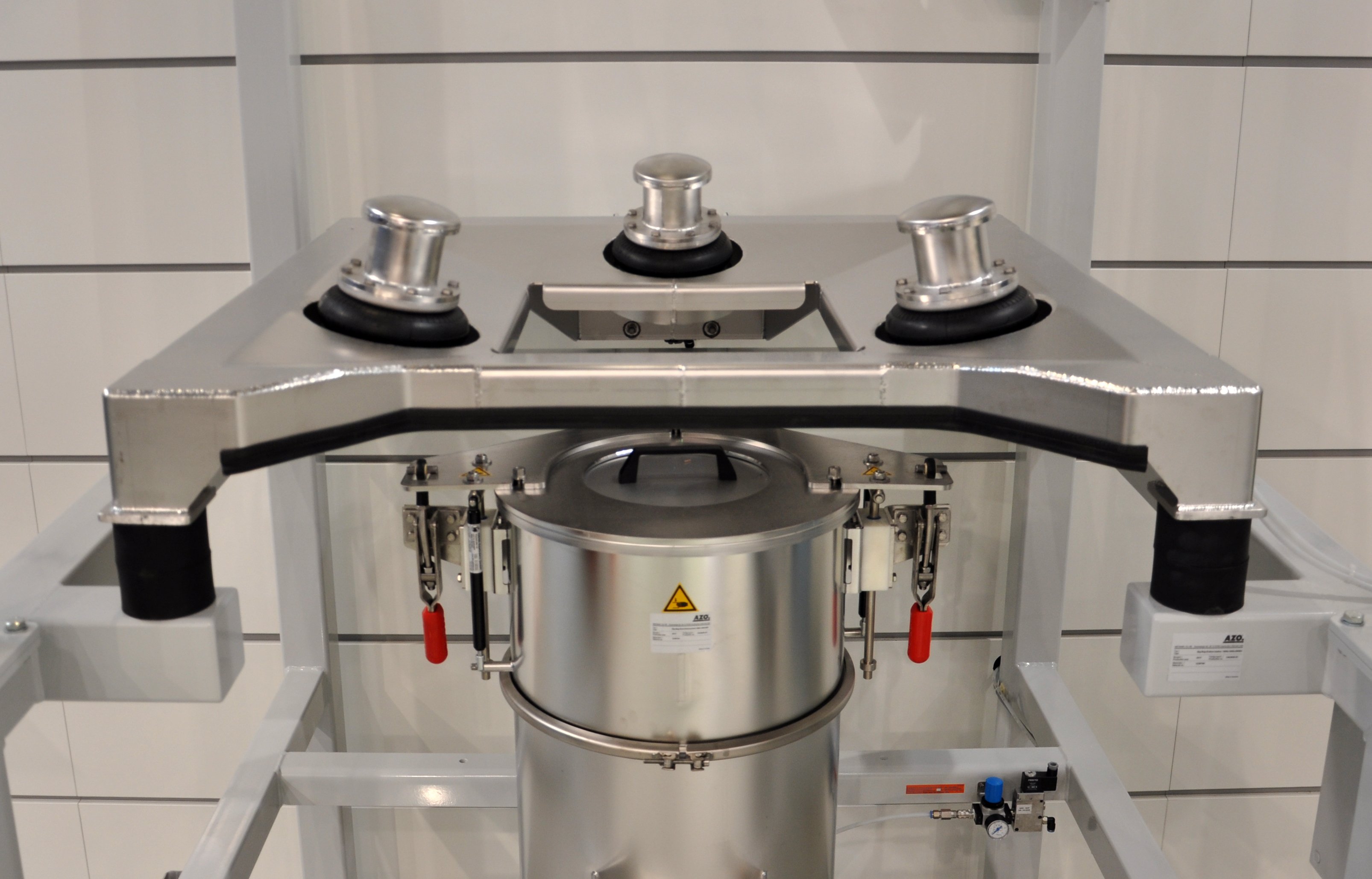

Safety Support Platform

Safety Support Platform

Dust-Control Connection System

Dust-Control Connection System

Minimized Storage Hopper

Minimized Storage Hopper

Model C Specifications

  • Size: 5.25’ x 5.25‘ x 16.80‘
  • Rated capacity: 2 tons
  • Painted steel frame
  • Painted steel bag lifting beam
  • Galvanized I-beam
  • Electric chain hoist
  • Lower frame with one operator step
Model C Specifications

Safety Support Platform

  • Pneumatic, manually-operated massage pads
  • Safe massager design, free of pinch points
  • Control box for operation of massagers
  • Electrically operated vibrator
  • Painted steel
Safety Support Platform

Dust-Control Connection System

  • Accommodates 14’ (350 mm) bag outlet
  • Manually operated, gas spring-assisted
  • 304 stainless steel product contact
  • Adaptable for other bag outlets
Dust-Control Connection System

Minimized Storage Hopper

  • Usable volume: 3.5 feet³
  • Diameter: 19.7 inches (500 mm)
  • 304 stainless steel hopper (AZO finish A22)
  • DIN 200 for rotary valve
  • Electrically operated vibrator
  • Level indicator
Minimized Storage Hopper
