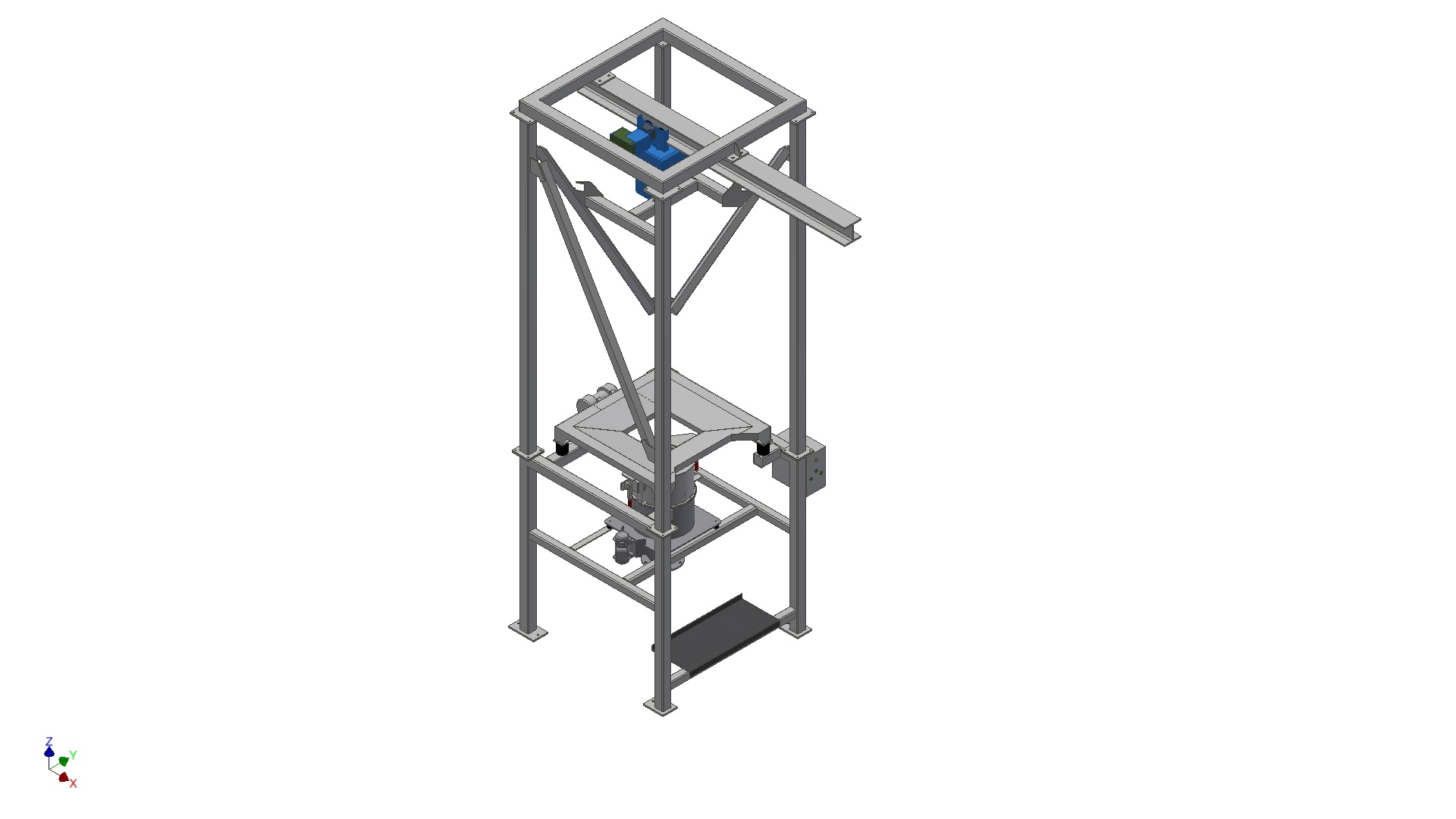

Model D: Modular Big Bag Unloader

The AZO Model D Mid-Height Modular Big Bag Unloader with Minimized Storage is configured for facilities that handle free-flowing ingredients.

Made of painted steel with a galvanized I-beam and electric chain hoist, the Model D Bulk Material Handling System allows for bags to be hung by a single operator, as well as easy bag adjustments to facilitate flow and complete emptying. It has a rated capacity of up to two tons.

The Model D Big Bag Unloader features both a feeding hopper with 3.5 cubic feet of storage space, and a safety support platform for optimal discharge of ingredients. The connection system helps control dust and contamination.

Our German-engineered modular bulk bag handling systems are flexible and let your operation quickly react to changing production conditions with minimal or no additional costs.

Check out our additional bulk bag unloader models below.

Model D Specifications

  • Rated capacity: 2 tons
  • Painted steel frame
  • Painted steel bag lifting beam
  • Galvanized I-beam
  • Electric chain hoist
  • Lower frame with one operator step
  • Size: 5.25' x 5.25' x 16.80'

Safety Support Platform

  • Electrically operated vibrator
  • Painted steel
SP2_support plattform_1257990-1

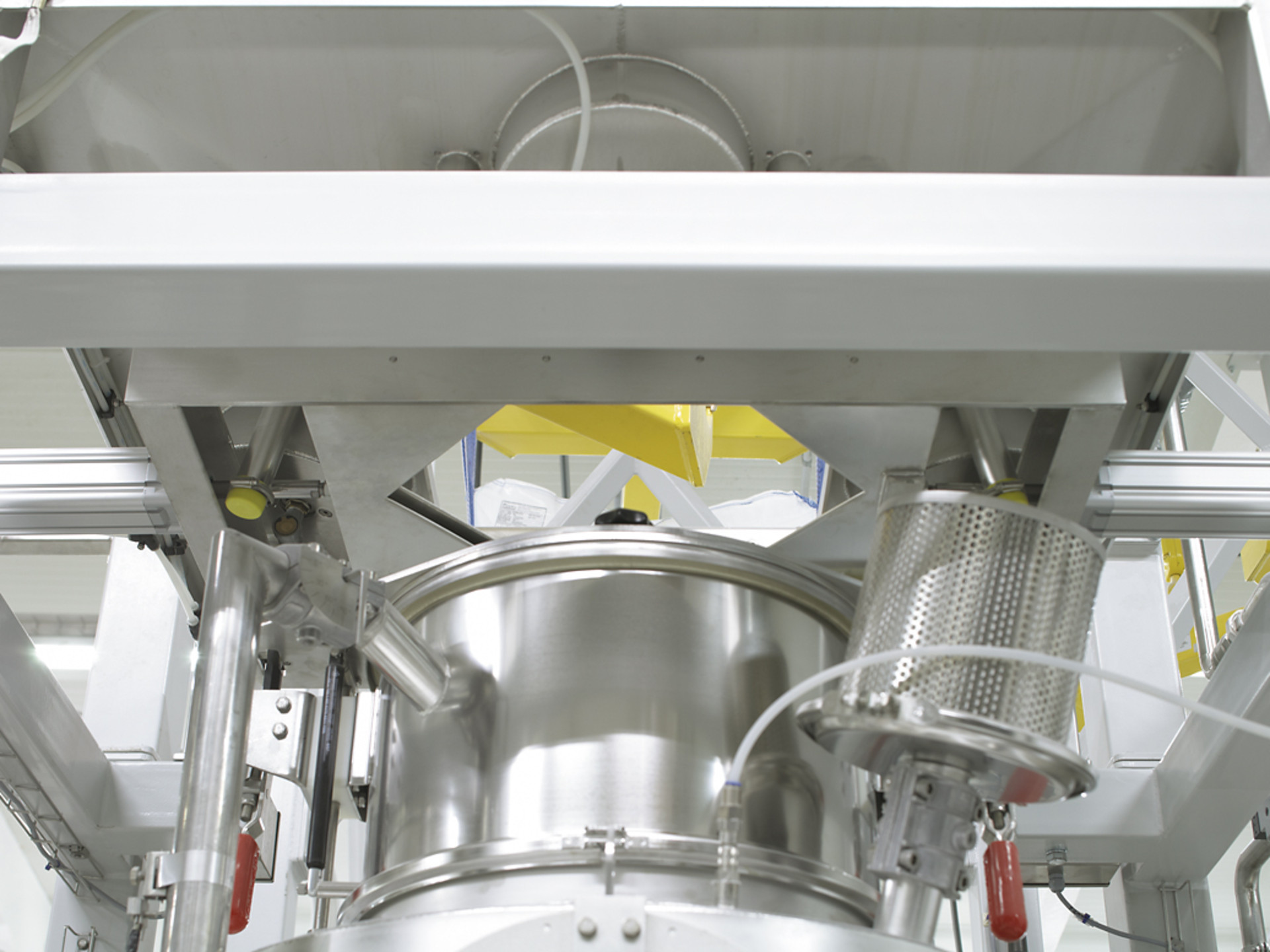

Dust-Control Connection System

  • Accommodates 14’ (350 mm) bag outlet
  • Manually operated, gas spring-assisted
  • 304 stainless steel product contact
  • Adaptable for other bag outlets

Minimized Storage Hopper

  • Usable volume: 3.5 feet³
  • Diameter: 19.7 inches (500 mm)
  • 304 stainless steel hopper (AZO finish A22)
  • DIN 200 for rotary valve
  • Electrically operated vibrator
  • Level indicator
H1_hopper D500_1290214
